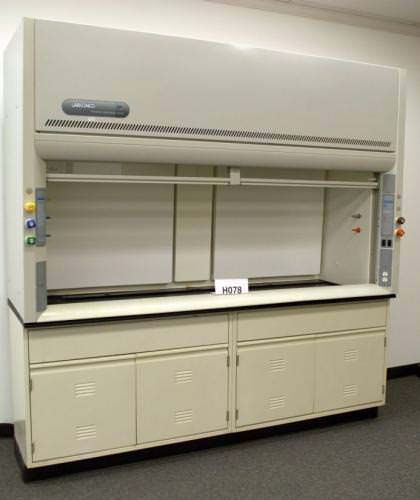

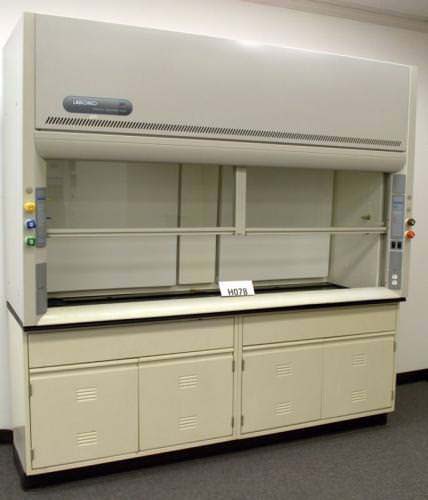

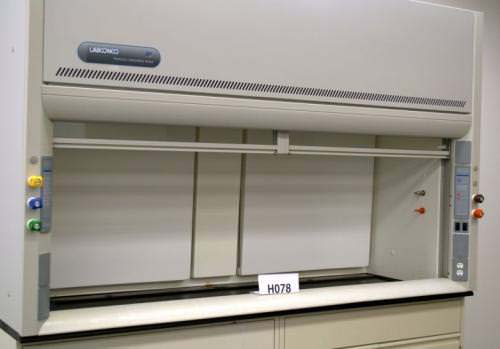

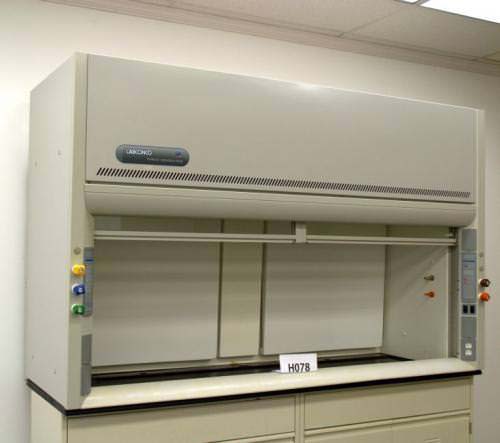

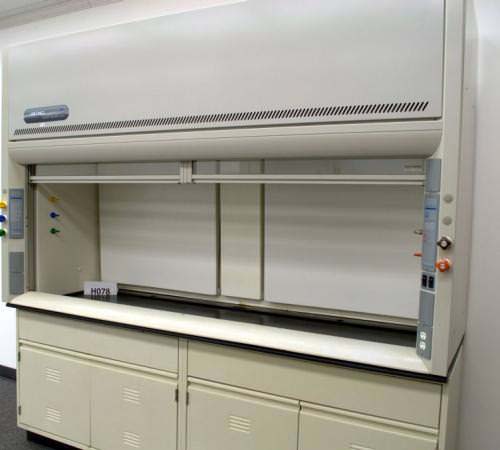

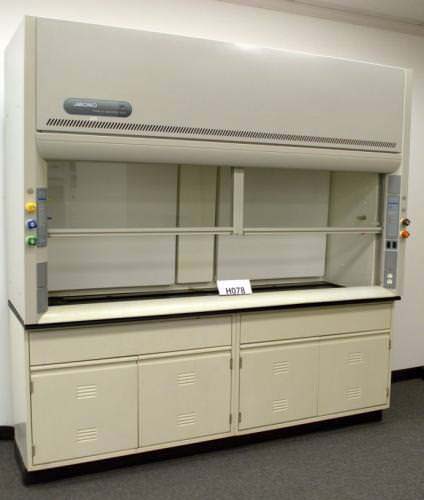

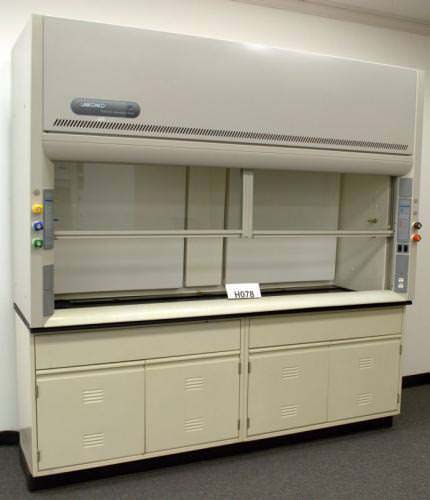

Description
Catalog Number: 968300010814
Serial Number: 020564332
Electrical Specification: 115 volts, 60 Hz, Domestic
Product Subcategory: General Chemistry
Style: Benchtop
Electrical Requirements: Domestic
Blower Requirements: Remote blower required
Lighting: T8 fluorescent
Compliance: SEFA 1-2002, NFPA 45-2000, ASTM E84-01, ASHRAE 110-95, ANSI Z9.5-1993, UL 3101-1/61010-1, CAN/CSA C22.2 No. 1010.1, UL 1805
Air Usage/Static Pressure with Sash Full Open: At 100 fpm, exhausts 1660 CFM at 0.19″ H2O static pressure
Air Usage/Static Pressure with Sash Open 18″: At 100 fpm, exhausts 1060 CFM at 0.08″ H2O static pressure
Exterior Dimensions:
Height: 59″
Width: 96″
Depth: 33″
Interior Dimensions:
Height: 48″
Width: 86″
Depth: 24″ Deep
Base Cabinets:
Width: 48″
Fume Hood Accessories:

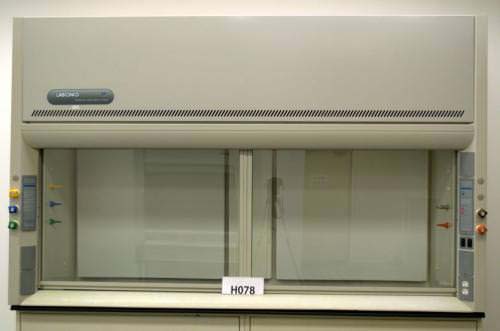

Vertical Sash, 2 Piece Divided.
Epoxy Resin Work Surface

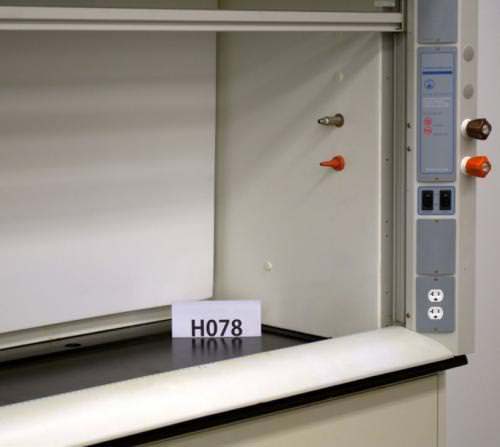

2 AC Power Plugs
